Rules and guidelines for towing

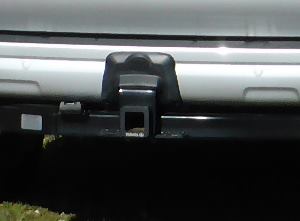

Rule 98 of the Highway Code addresses towing. In order to tow a trailer or caravan you will need a tow ball (also called a tow bar, tow hitch or trailer hitch). For cars, these are predominantly of two types: a fixed tow ball attached to the chassis, or a removable tow ball or other type of connector that’s fastened through what’s called a receiver which will be Class I, II, III or IV (pictured).

classIV-tow-hitchThe different classes or receiver indicate how much weight you can tow (assuming your car is sufficiently capable), and they are usually a square socket:

  • Class I: up to 910kg/2000 pounds
  • Class II: up to 1600kg/3500 pounds
  • Class III: up to 2300kg/5000 pounds
  • Class IV: up to 4500kg/10000 pounds

To the left of the receiver you can see a small flap which you lift up and plug in the cable for the lights.

Vehicle suitability for towing

Trailers come in two main types: braked and unbraked. An unbraked trailer has no brakes on the trailers wheels. Typically the maximum unbraked trailer weight that you can pull is 750kg, but it will be less if your car is small. On a braked trailer typical weights range from 1500-3500kg depending on the type of vehicle. The towing receiver pictured above is a Class IV and is fitted to a large Toyota SUV which is capable of pulling 2800kg.

While a car might have a tow hitch capable of withstanding a heavy trailer it doesn’t mean that the car can actually pull a trailer of that weight. Manufacturers will give an indication in the instruction manual about the maximum towing capacity, which is reliant on a number of the car’s specifications:

Motorbikes are only allowed to tow a trailer up to 1m wide. Don’t forget that if you are towing a trailer that you won’t be able to filter through traffic.

Gearbox and clutch

The gearbox must be strong enough and have the right gearing to be able to cope with towing. Usually a manual car is capable of towing more than an automatic, but this does depend on the clutch. Too much pressure through the clutch will make it slip, and too much stress through the gearbox could cause the fluid to overheat, strip the teeth off the cogs, or do some other damage.

Chassis strength

A vehicle’s chassis must have the rigidity to be able to cope with a heavy weight exerting force on it. Under acceleration uphill, for example, a heavy trailer will exert a backwards force on the car which could stretch the chassis.

Brake effectiveness

Modern disc brakes are capable of dissipating quite a lot of heat and providing a good level of braking force. However, the reason why unbraked trailers are generally limited to 750kg is because this is an extra 750kg of force that the front brakes must deal with, often on top of additional luggage and people within the car. It is easy to overheat your brakes and suffer brake fade on a long downhill slope when towing a trailer. Check our article here on brake fade.

Engine power and torque

Torque is the main consideration for whether a car is capable of towing a large trailer. Torque is the turning force exerted on the wheels. Tractors and trucks have huge amounts of torque in relation to their horsepower – often multiples more, whereas the torque and power of a road car are more similar. If there is no enough torque there’s a risk that the car will be incapable of moving a trailer, or may run out of ability to move forwards on an uphill stretch.

Vehicle weight

Light cars can be more prone to being negatively affected by the movement of a trailer. For example, in a side wind, a caravan can have a lot of side ways force exerted on it. An extremely light car may not have the mass to keep the caravan under control. As per the rule, there must be some downwards pressure on the tow ball to avoid the rear wheels being lifted which could cause the trailer to jack knife. Tow ball manufacturers will give the maximum weight allowed on the tow ball.

Safety

Ensure that your trailer’s tyres have the correct pressure, that the rear light clusters work, that there is no rust, and if it has brakes that the brakes are working.

If your trailer is open then you will need equipment to tie loads down. If your trailer is closed, ensure that the latches and locks on the rear are working correctly and not likely to burst open.

When you hitch your trailer always attach the safety chain.

Driving line

When pulling a trailer drivers should consider the swept path of the rearmost wheels. These will cut the corner and therefore the driver should swing out wider than usual in a corner or when entering/exiting a driveway. On a trailer with a large rear overhang, the rear corner will pivot wider than the path the rear wheels take, too.

Trailer sway

Your car might have trailer sway mitigation (part of some electronic stability control packages) which helps stabilise the car if the trailer starts wobbling, or swinging from side-to-side. If it doesn’t, the best way to deal with this is to simply take your foot off the accelerator. Don’t brake unless you absolutely have to. The trailer will come back into line as the speed drops. Keep a tight hold of the wheel and don’t make any sudden movements that could worsen the situation.

Here’s an example of it going wrong:

Highway Code Rules

Rule 98

Vehicle towing and loading. As a driver

  • you MUST NOT tow more than your licence permits. If you passed a car test after 1 Jan 1997 you are restricted on the weight of trailer you can tow
  • you MUST NOT overload your vehicle or trailer. You should not tow a weight greater than that recommended by the manufacturer of your vehicle
  • you MUST secure your load and it MUST NOT stick out dangerously. Make sure any heavy or sharp objects and any animals are secured safely. If there is a collision, they might hit someone inside the vehicle and cause serious injury
  • you should properly distribute the weight in your caravan or trailer with heavy items mainly over the axle(s) and ensure a downward load on the tow ball. Manufacturer’s recommended weight and tow ball load should not be exceeded. This should avoid the possibility of swerving or snaking and going out of control. If this does happen, ease off the accelerator and reduce speed gently to regain control
  • carrying a load or pulling a trailer may require you to adjust the headlights

In the event of a breakdown, be aware that towing a vehicle on a tow rope is potentially dangerous. You should consider professional recovery.

Rule 98 doesn’t mention lights, but don’t forget that your trailer must have working indicators, brake lights, reversing light and rear lights to be legal.

Most people can’t answer these 15 questions about vehicle loading correctly. Can you? Try them here.
